Back in 2012, Anil Madhavapeddy and I were building MirageOS as a library OS, and we started to accumulate a lot of libraries to manage manually. So I wrote opam to handle the dependencies and the mirage tool, an embedded DSL to describe device trees and auto-generate the build and wiring code. Gabriel Radanne later refined and formalised it as Functoria, which made the correspondence between device graphs and OCaml functors explicit. F Prime does the same thing for C++ flight software: as I described in a previous post, both frameworks decompose systems into typed components and generate the plumbing that wires them together. The difference is that Functoria is an embedded DSL in OCaml, while FPP (F Prime's modelling language) is a standalone DSL with a formal specification. The interesting thing about a standalone DSL is that it can target multiple languages: the same .fpp files can generate C++ and OCaml.

So I wrote ofpp to test this idea. It parses the complete FPP grammar and generates MirageOS wiring code from FPP topology files. The generated code compiles against the real MirageOS libraries, and NASA's reference fpp-check tool accepts the same .fpp files unchanged. FPP's dependency graph maps directly to OCaml functors, so the rest of the post walks through that mapping.

ofpp is a prototype, not a replacement for the mirage tool or for Functoria -- I built it to explore what a shared architecture language between F Prime and MirageOS could look like.

The mapping

Here is UnixHelloKey, a unikernel that takes a --hello command-line flag (source):

passive component Unikernel {
  async input port start: serial
  param hello: string default "Hello World!"
}

instance unikernel: Unikernel base id 0

topology UnixHelloKey {
  instance unikernel
}

let hello_0 =
  let doc = Cmdliner.Arg.info ~doc:"hello" ["hello"] in
  Mirage_runtime.register_arg
    Cmdliner.Arg.(value & opt string "Hello World!" doc)

let start = lazy (Unikernel.start ~hello:(hello_0 ()))

let () =
  let t =
    let open Lwt.Syntax in
    (* Mirage_runtime init ... *)
    let* _ = Lazy.force start in
    Lwt.return ()
  in
  Unix_os.Main.run t; exit 0

The FPP instance unikernel resolves to the OCaml module Unikernel by convention (capitalised). The param hello declaration generates a Cmdliner term (hello_0) that becomes the --hello command-line flag, passed as a labelled argument to Unikernel.start.

$ dune exec examples/mirage/tutorial/hello-key/main.exe
2026-03-04T13:52:57-08:00: [INFO] [application] Hello World!
...
$ dune exec examples/mirage/tutorial/hello-key/main.exe -- \
    --hello='Bonjour\ MirageOS!'
2026-03-04T13:53:08-08:00: [INFO] [application] Bonjour MirageOS!
...

ofpp handles wiring only. Type safety comes from the OCaml module system: the generated functor applications must type-check against the MirageOS library signatures, so a miswired topology is a compile error.

config.ml vs config.fpp

In MirageOS, each unikernel has a config.ml that describes its device dependencies using Functoria combinators. In FPP, each unikernel has a config.fpp that describes the same dependencies as a connection graph. Here is the network example -- a unikernel that needs a TCP/IP stack:

open Mirage

let main =
  main "Unikernel.Main" (stackv4v6 @-> job)
let stack = generic_stackv4v6 default_network
let () = register "network" [ main $ stack ]

module Unikernel {
  passive component Main {
    async input port start: serial
    output port stack: serial
  }
}

instance unikernel: Unikernel.Main base id 0

topology UnixNetwork {
  import SocketStack
  instance stackv4v6
  instance unikernel

  connections Start {
    unikernel.stack -> stackv4v6.connect
  }
}

The Functoria DSL hides the stack implementation behind generic_stackv4v6. The FPP topology makes it explicit: import SocketStack pulls in a sub-topology that wires Udpv4v6_socket and Tcpv4v6_socket into Stackv4v6.Make. The connection unikernel.stack -> stackv4v6.connect declares that the unikernel depends on the stack.

The FPP version is more verbose. Functoria's combinators are more concise for pure OCaml projects, and generic_stackv4v6 picks the right implementation for each target automatically (FPP makes you spell that out). The payoff is that the topology is a standalone graph, not embedded in OCaml. The same .fpp files can drive C++ code generation, and the connection graph is available for visualisation and tooling.

The device catalogue

Device components live in a shared mirage.fpp. Here are three of the devices used in the UnixPing6 topology shown below:

module Vnetif {
  passive component Make {
    import Mirage_net.S
    output port backend: serial
  }
}

module Ethernet {
  passive component Make {
    import Ethernet.S
    output port net: serial
  }
}

module Ipv6 {
  passive component Make {
    import Tcpip.Ip.S
    async input port connect: Ipv6Connect
    output port net: serial
    output port eth: serial
  }
}

Each FPP construct maps to a specific OCaml concept.

Output ports are functor arguments. Vnetif.Make has one output port (backend), so its generated functor takes one argument: Vnetif.Make(Backend). Ipv6.Make has two (net and eth), so its functor takes two: Ipv6.Make(Net)(Ethernet). The topology connections decide which instance fills each argument.

import declarations are module type constraints. import Mirage_net.S on Vnetif.Make tells ofpp to generate module type Net = Mirage_net.S in the output. The OCaml compiler then checks that the concrete module satisfies that signature.

Port types encode connect signatures. Ipv6Connect is defined elsewhere in mirage.fpp as port Ipv6Connect(conf: Ipv6Conf), so Ipv6.connect takes a labeled ~conf argument. Positional parameters (like _0: string) generate positional arguments instead.

The generated code for UnixPing6 uses all three:

(* from import declarations *)
module type Backend = Vnetif.BACKEND
module type Net = Mirage_net.S
module type Ethernet = Ethernet.S
module type Ipv6 = Tcpip.Ip.S

(* from topology connections + output ports *)
module Net = Vnetif.Make(Backend)
module Ethernet = Ethernet.Make(Net)
module Ipv6 = Ipv6.Make(Net)(Ethernet)

(* from connect port types + connection order *)
let* backend = Backend.connect () in
let* net = Net.connect backend in
let* ethernet = Ethernet.connect net in
let* ipv6 = Ipv6.connect net ethernet in

If a connection is missing, it does not compile.

A larger example

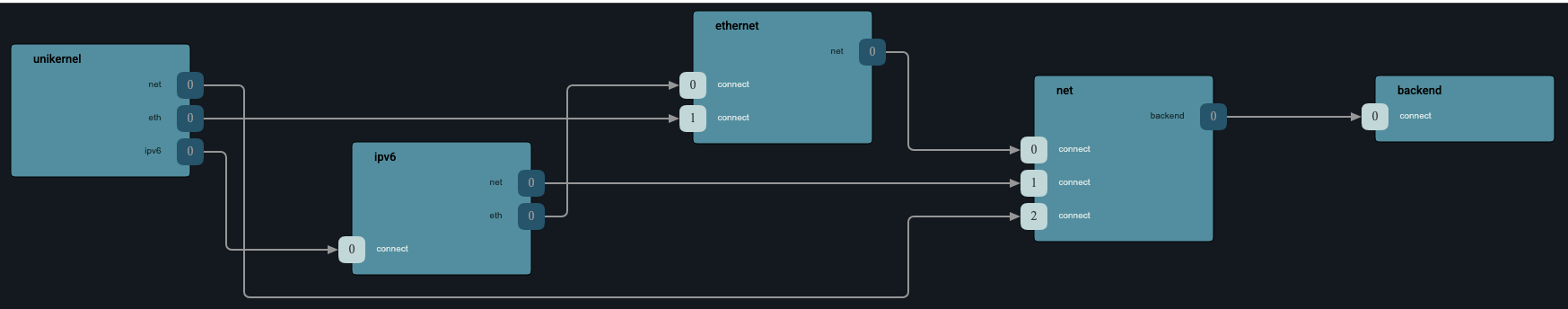

Here is UnixPing6, an IPv6 ping unikernel wired through a virtual network (source):

module Unikernel {
  passive component Main {
    async input port start: serial
    output port net: serial
    output port eth: serial
    output port ipv6: serial
  }
}

instance unikernel: Unikernel.Main base id 0

topology UnixPing6 {
  instance backend
  instance net
  instance ethernet
  instance ipv6
  instance unikernel

  connections Connect {
    net.backend -> backend.connect
    ethernet.net -> net.connect
    ipv6.net -> net.connect
    ipv6.eth -> ethernet.connect
  }
  connections Start {
    unikernel.net -> net.connect
    unikernel.eth -> ethernet.connect
    unikernel.ipv6 -> ipv6.connect
  }
}

module type Backend = Vnetif.BACKEND
module type Net = Mirage_net.S
module type Ethernet = Ethernet.S
module type Ipv6 = Tcpip.Ip.S

module Net = Vnetif.Make(Backend)
module Ethernet = Ethernet.Make(Net)
module Ipv6 = Ipv6.Make(Net)(Ethernet)
module Unikernel = Unikernel.Main(Net)(Ethernet)(Ipv6)

open Lwt.Syntax

let connect = lazy (
  let* backend = Backend.connect () in
  let* net = Net.connect backend in
  let* ethernet = Ethernet.connect net in
  let* ipv6 = Ipv6.connect net ethernet in
  Lwt.return (net, ethernet, ipv6))

let start = lazy (
  let* (net, ethernet, ipv6) = Lazy.force connect in
  Unikernel.start net ethernet ipv6)

(* Mirage_runtime init, then: *)
let* _ = Lazy.force start in ...

Sub-topology composition

Sub-topologies are shared via import. The DNS example imports the socket stack and wires additional layers on top:

topology UnixDns {
  import SocketStack          @ pulls in Udpv4v6_socket, Tcpv4v6_socket, Stackv4v6
  instance stackv4v6
  instance happy_eyeballs_mirage
  instance dns_client
  instance unikernel

  connections Connect_device {
    happy_eyeballs_mirage.stack -> stackv4v6.connect
  }
  connections Start {
    dns_client.stack -> stackv4v6.connect
    dns_client.happy_eyeballs -> happy_eyeballs_mirage.connect_device
    unikernel.dns -> dns_client.start
  }
}

The generated main.ml chains the socket stack connect, then connect_device for Happy Eyeballs, then start for the DNS resolver -- each connection group becomes a lazy binding that forces its dependencies:

module type Udpv4v6_socket = Tcpip.Udp.S
module type Tcpv4v6_socket = Tcpip.Tcp.S
module type Stackv4v6 = Tcpip.Stack.V4V6
module type Happy_eyeballs_mirage = Happy_eyeballs_mirage.S
module type Dns_client = Dns_client_mirage.S

module Stackv4v6 = Stackv4v6.Make(Udpv4v6_socket)(Tcpv4v6_socket)
module Happy_eyeballs_mirage = Happy_eyeballs_mirage.Make(Stackv4v6)
module Dns_client = Dns_resolver.Make(Stackv4v6)(Happy_eyeballs_mirage)
module Unikernel = Unikernel.Make(Dns_client)

let connect = lazy (
  let* udpv4v6_socket = Udpv4v6_socket.connect ~ipv4_only:false ... in
  let* tcpv4v6_socket = Tcpv4v6_socket.connect ~ipv4_only:false ... in
  Stackv4v6.connect udpv4v6_socket tcpv4v6_socket)

let connect_device = lazy (
  let* stackv4v6 = Lazy.force connect in
  let* happy_eyeballs_mirage = Happy_eyeballs_mirage.connect_device stackv4v6 in
  Lwt.return (stackv4v6, happy_eyeballs_mirage))

let start = lazy (
  let* (stackv4v6, happy_eyeballs_mirage) = Lazy.force connect_device in
  let* dns_client = Dns_client.start stackv4v6 happy_eyeballs_mirage in
  Unikernel.start dns_client)

This is something Functoria's flat combinator model does not express cleanly: named sub-topologies that can be imported and reused across unikernels, with cross-boundary connections wired by the parent topology.

Target switching

In MirageOS, you write your application once and compile it for different platforms without changing application code. mirage configure -t unix wires in the kernel's TCP/IP stack; -t hvt wires in MirageOS's own protocol implementations running on a virtual network device. In FPP, each target is simply a different topology.

Shared sub-topologies (TcpipStack, SocketStack, DnsStack) are imported and reused across variants. The caller picks the target by passing it to ofpp:

ofpp to-ml --topologies UnixHello mirage.fpp tutorial/hello/config.fpp
ofpp to-ml --topologies UnixDns --target unix mirage.fpp applications/dns/config.fpp

The --target flag selects the OS main loop: unix (default), xen, solo5, or unikraft. The codegen emits the appropriate entry point -- Unix_os.Main.run, Xen_os.Main.run, Solo5_os.Main.run, or Unikraft_os.Main.run. Target switching in ofpp is very experimental for now: only the Unix target has been tested end-to-end.

Mixing C++ and OCaml components

ofpp already works for building MirageOS unikernels on the Unix backend: describe the topology in FPP, run ofpp to-ml, compile. The interesting next step is mixing C++ F Prime components with OCaml MirageOS components in the same topology.

Three pieces are missing. First, binary serialisation: ofpp already generates OCaml types from FPP enums, structs, and arrays, but matching C++'s wire format for command, telemetry, and event dispatch is not done yet. Second, FFI stubs: I have early experiments with OCaml components running inside F Prime over caml_callback, but they are not ready to open-source. Third, build integration: I have a working (if ugly) CMake + dune bridge, though a cleaner solution might come from Package Managers à la Carte (pre-print).

The end goal: run OCaml components on isolated MirageOS platforms (Solo5, Muen, Unikraft, seL4) inside F Prime deployments, and let MirageOS unikernels integrate with existing C++ flight software.

State machines

FPP also has state machines. ofpp generates typed OCaml modules from them: states become a GADT, signals become a variant, and guards and actions become functor parameters. Here is a toy example:

state machine Door {
  action lock
  guard locked
  signal open
  signal close
  initial enter Closed
  state Closed {
    on open if locked enter Closed
    on open enter Opened
  }
  state Opened {
    on close do { lock } enter Closed
  }
}

type closed
type opened

type _ state =
  | Closed : closed state
  | Opened : opened state

type signal = Open | Close

module type ACTIONS = sig
  type ctx
  val lock : ctx -> unit
end

module type GUARDS = sig
  type ctx
  val locked : ctx -> bool
end

module Make
  (A : ACTIONS)
  (G : GUARDS with type ctx = A.ctx) :
sig
  type t
  val create : A.ctx -> t
  val state : t -> any
  val step : t -> signal -> t
end

Phantom types index the GADT, so pattern matching in step is exhaustive. The caller supplies ACTIONS and GUARDS as functor arguments. ofpp also renders state machines as Graphviz diagrams. In F Prime, components can embed state machine instance declarations that connect a state machine to the component's lifecycle; ofpp does not wire those up fully yet.

ofpp

The tool is called ofpp. I started it in February at the JPL workshop. Rob Bocchino designed FPP with a formal specification and an upstream test suite of 670 .fpp files across 35 categories, which I used to validate the parser. The parser covers the complete FPP grammar (zero conflicts).

The whole thing is about 19k lines of OCaml: 1k for the parser and lexer, 8k for the checker, 2.7k for the code generator, and the rest for tests. ofpp also exports topology graphs to fprime-visual. The example repo covers all of mirage-skeleton: tutorials, device examples, and applications like DNS, DHCP, and Git. Every example has a cram test that builds the unikernel and exercises it.

ofpp is not affiliated with NASA or JPL. It is an independent experiment. If you work with FPP or MirageOS and want to try it:

# macOS
brew tap parsimoni-labs/tap && brew install ofpp

# from source
opam pin add fpp https://github.com/parsimoni-labs/ocaml-fpp.git

ofpp check path/to/file.fpp
ofpp to-ml path/to/file.fpp
ofpp dot path/to/file.fpp | dot -Tsvg -o sm.svg

If you have a MirageOS config.ml, try describing the same topology in FPP and compare the generated main.ml with what Functoria produces. File issues on GitHub.
